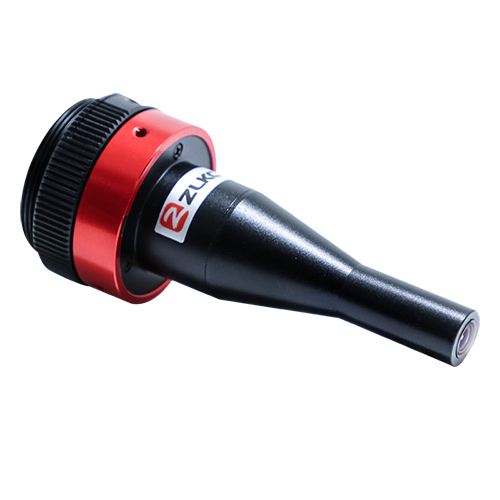

    中联科创高分辨率内壁检测镜头RV220MP5I 1/1.8英寸C口 360° 内孔成像镜头
    规格：1/1.8″C型
    采用最新光学设计，大景深
    内孔外部检测无需延伸入小孔
    超宽视角178°将整个内孔展现为平面
    内孔侧面与底面都具有同等清晰高分辨率
    适用于筒状、内孔、螺纹等物体内部检测
    Contact
    Tel:+86 020-38312466
    SpecificationsDimensionPDF downloadOther

    型号Model

    RV220MP5I

    CCD尺寸Image Size

    1/1.8-inch

    像圆Image Circle

    Φ5.4

    光圈范围F No.

    F2.8-16

    工作距离 WD (mm)

    5-70mm

    视场角Horizontal Angle of View

    178°×178°×178°

    分辨率Resolution

    10Mega Pixel

    波长范围Wavelength Range

    450-800

    接口Mount

    C-Mount

    法兰后焦距Flange BFL

    17.526mm

    外形尺寸Dimension

    Ф17x64mm

    工作温度Working Temperature

    -20ºC ～ +60ºC

    规格特性
    ◆ 品牌：ZLKC(中联科创)
    ◆ 规格接口：1/1.8″ C型
    ◆ 像圆：Φ5.4mm
    ◆ 工作距离：5-70mm
    ◆ 镜头种类：360° 成像镜头（外壁检测） 1/1.8" C口

    订货型号
    RV220MP5I

    外形尺寸


    应用场景
    广泛应用于工业检测、容器内壁、塑料盖、半导体、瓶颈、螺丝和带孔物体等领域，这款镜头可以适用于较大范围直径和厚度的物体，是筒状、内孔、螺纹等物体内部多种形状物体检测的完美解决方案。
    RV220MP5I Specifications
