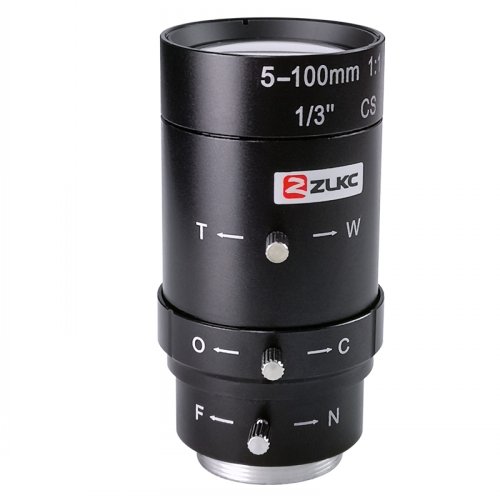

    ZLKC Lens VM05100MPC 5-100mm 2Megapixel Manual Iris Lens, 1/3” Vari-focal HD Lens ​CCTV Lens CS Mount
    1/3″CS-Mount 5-100mm
    Manual Iris Lens
    Optical glass material
    Locking set screws for focus and zoom
    Metal structure，compact appearance
    Contact
    Tel:+86 020-38312466
    SpecificationsDimensionPDF downloadOther

    Model

    VM05100MPC

    Image Size

    1/3-inch

    Focal length

    5-100mm

    F No.

    F1.6-C

    M.O.D(m)

    0.2m

    Operation

    Iris

    Manual

    Focus

    Manual

    Zoom

    Manual

    Distortion

    1/3"Type

    -1%@wide;-0.8%@tele

    Horizontal Angle of View

    1/3"Type

    76.2°×3.4°

    Mount

    CS-Mount

    Back focal length

    6.75-17.5mm

    外形尺寸Dimension

    Ф36x67.9mm

    Weight

    73.0g

    Remark

    3MP HD LENS

    Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1/3″ CS-mount
    ◆ Focal length：f=5-100mm
    ◆ F No.：F1.6-C
    ◆ Features：1/3" 5-100mm 2Megapixel Manual Iris Lens Vari-focal  Lens CS Mount HD Lens

    Model
    VM05100MPC

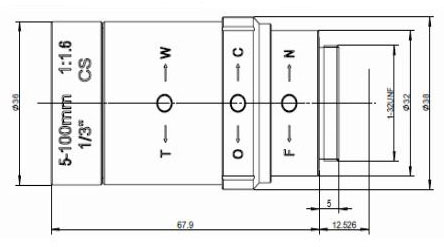

    Dimension


    Industries Application
    These are used in video surveillance industry and industrial automation. These cover applications from ITS and road monitoring and bank to Building monitoring, postal sorting and traffic cameras and so on
