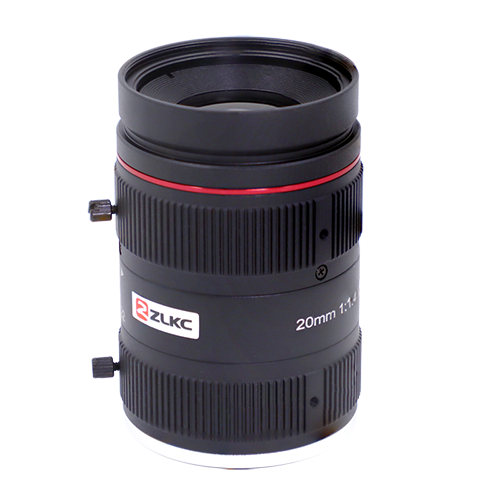

    ITS Lens KM2014MP12C 20mm 12MP Manual Iris Lens, 1.1-inch F1.4 Fixed focus C Mount Traffic camera lens
    C-Mount f=20mm F1.4
    Maximum image circle of 1.1"
    High quality imaging with 12 MP resolution
    high contrast,delivers clean and sharp images
    Low distortion,Excellent low-light performance
    Locking set screws for focus and Iris
    Contact
    Tel:+86 020-38312466
    SpecificationsDimensionPDF downloadOther

    Model

    KM2014MP12C

    Image Size

    1.1-inch

    Focal length

    20mm

    F No.

    F1.4-C

    M.O.D(m)

    0.3

    Operation

    Iris

    Manual

    Focus

    Manual

    Horizontal Angle of View

    1.1" Type

    49.1°×42.4°×28.0°

    1" Type

    44.6°×39.4×21.0°

    2/3"Type

    31.0°×24.7°×18.6°

    Distortion

    1.1" Type

    -3.21%

    BFL

    12.474mm

    MFL

    13.5mm

    Flange BFL

    17.526mm

    Mount

    C-Mount

    Dimension

    Ф45x67.7mm

    Weight

    216.5g

    Operating temperature

    -30℃～+70℃

    Remark

    12 Megapixel ITS Lens

    Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1.1″ C-mount
    ◆ Focal length：f=20mm
    ◆ F No.：F1.4-C
    ◆ Features：1.1-inch ITS Lens 20mm 12MP Manual Iris Lens,  F1.4 C Mount Traffic camera lens

    Model
    KM2014MP12C

    Dimension


    Industries Application
    These are used in video surveillance industry and ITS. Violation behaviors detection: driving on lane line, Illegal lane change, wrong-way driving detection, seatbelt and phone call detectionThese cover applications from ITS and road monitoring and bank to security bayonet monitoring, Electronic police snapshot and traffic cameras and so on
    KM2014MP12C Specifications
