CCTV Lens VG12050MP6IR 12-50mm 6.0 Megapixel DC Iris Lens,1/1.8” Vari-focal HD Lens CS Mount: 1/1.8″ CS-Mount 12-50mm; 6MP Auto DC iris F1.5-360; High resolution ,excellent image uniformity; Locking set screws for focus and zoom; IR Correction Lens, compact structure; For Security Camera,CCTV Lens

Contact

Tel:+86 020-38312466

Specifications Dimension PDF download Other

Model		VG12050MP6IR
Image Size		1/1.8-inch
Focal length		12-50mm
F No.		F1.5-360
M.O.D(m)		0.3m
Operation	Iris	Auto
	Focus	Manual
	Zoom	Manual
Distortion	1/1.8"Type	-9%@wide ，-3%@Tele
Horizontal Angle of View	1/1.8"Type	W38°×33°×20°;T9.8°×8.6°×4.8°
Mount		CS-Mount
Back focal length		7.45mm
Flange focal length		12.53mm
Dimension		Ф48x79.42mm
Weight		155.0g
Remark		6MP HD CCTV LENS

Product Features
◆ Brand：ZLKC
◆ Image Size：1/1.8″ CS-mount
◆ Focal length：f=12-50mm
◆ F No.：F1.5-360
◆ Features：1/1.8-inch 12-50mm 6.0Megapixel DC Iris Lens IR CCTV Lens CS Mount HD Lens

Model
VG12050MP6IR

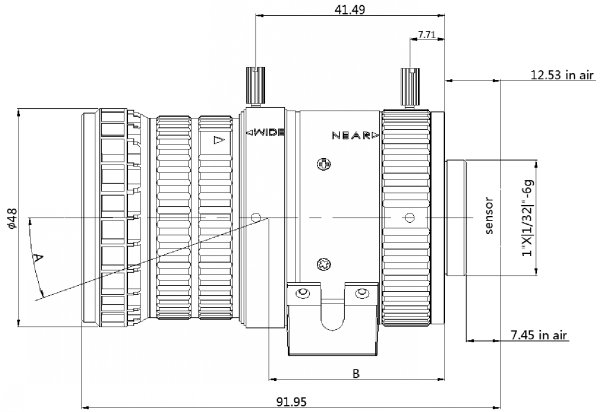

Dimension

※ Industries Application
These are used in video surveillance industry. These cover applications from ITS and road monitoring and bank to Building monitoring, postal sorting and traffic cameras and so on
