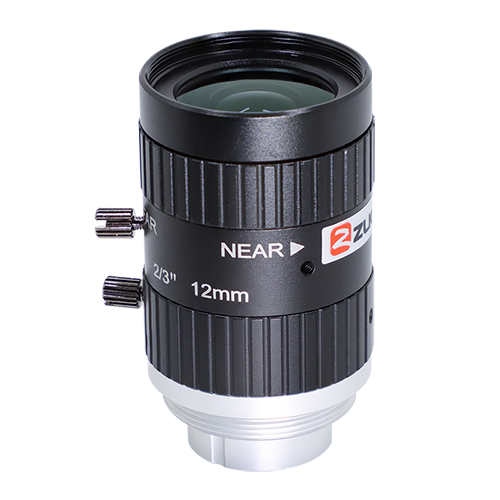

    10MP high resolution lens 12mm VM1228MP10 Industrial camera Lens 2/3-inch F2.8 C-Mount
    2/3″C-Mount f=12mm 10MP
    Low distortion,High resolution
    Locking set screws for focus and Iris
    Small volume,High measurement accuracy
    Convenient for small cameras
    Lower price,higher performance

    10MP high resolution lens 12mm

    Working Distance

    Magnification

    2/3"Field of View(mm)

    Model

    VM1228MP10

    mm

    X

    H

    V

    Image Size

    2/3-inch

    1000

    0.012X

    708.14

    588.59

    Focal length

    12mm

    900

    0.013X

    637.65

    529.99

    F No.

    F2.8-16

    850

    0.014X

    602.33

    500.63

    M.O.D(m)

    0.15-Inf.

    800

    0.015X

    566.98

    471.25

    Operation

    Iris

    Manual

    750

    0.016X

    517.93

    441.96

    Focus

    Manual

    700

    0.017X

    496.55

    412.72

    Angle of View

    (D×H×V)

    2/3"

    49.2°×40.3°×30.8°

    650

    0.018X

    461.20

    383.34

    1/2"

    36.9°×29.9°×22.7°

    600

    0.020X

    425.81

    353.92

    1/3"

    28.1°×22.7°×17.1°

    550

    0.022X

    390.63

    295.25

    TV Distortion

    -0.03%

    500

    0.024X

    355.22

    295.25

    BFL

    8.43mm

    450

    0.027X

    320.03

    266.00

    Flange FL

    17.526mm

    400

    0.030X

    284.64

    236.58

    Mount

    C-Mount

    350

    0.034X

    249.22

    207.14

    2/3"FOV

    108.2mm×89.9mm(WD=150mm)

    300

    0.040X

    214.05

    177.91

    Dimension

    Φ29×41.5mm

    250

    0.048X

    178.67

    148.50

    Weight

    70.3g

    200

    0.060X

    143.47

    119.25

    Filter

    M27 P=0.5mm

    150

    0.067X

    108.18

    89.91

    Working Temperature

    -20ºC +60ºC

    100

    0.080X

    76.42

    63.51

    Product Features
    Brand:ZLKC
    ◆ Image Size:2/3″ C-mount
    ◆ Focal length:f=12mm
    ◆ F No.:F2.8-16
    ◆ Features:2/3-inch 10MP high resolution Lens 12mm Manual Iris Lens
    Model
    VM1228MP10

    Dimension


    Industries Application
    These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C,traffic cameras and so on
    VM1228MP10 Specifications
